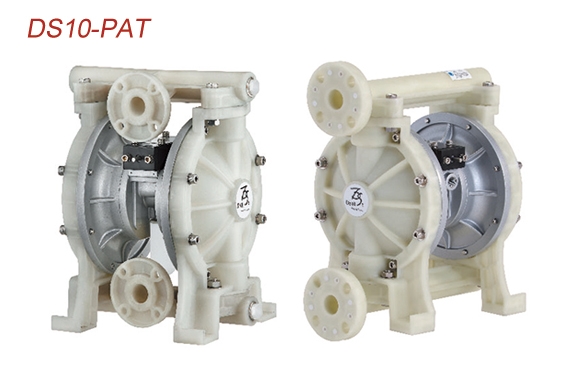

DS10-PAT
Specifications
Liquid inlet/outlet: 1" JIS 5K Flange type
Flow rate per cycle: 450ml
Max air consumption: 1080ml/per min.; 38.12Scfm/per min.
Max flow rate: 157ml/per min.; 41.42Gallon/per min.
Max working pressure: 7Bar(kgf/cm2);100psi
Solid limited: 3mm
