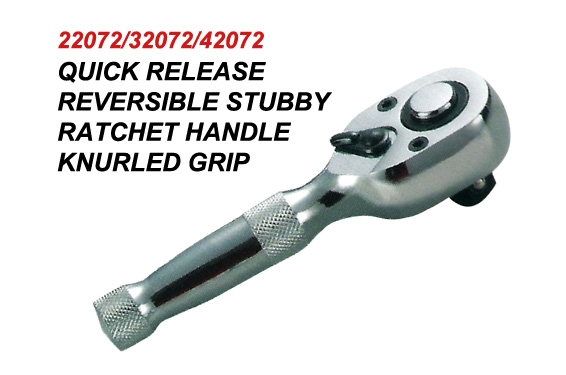

Quick Release Reversible Stubby Ratchet Handle Knurled Grip
Specifications
| 72T | Torque Comparison | |||||||
| Part No. | Size | L(mm) | Width | Chief | Ansi | Din | ||
|---|---|---|---|---|---|---|---|---|
| 22072 | 1/4"Dr. | 85mm | 25mm | 26mm | 106g | 82N.M | 51N.M | 62N.M |
| 32072 | 3/8"Dr. | 105mm | 33mm | 32mm | 220g | 275N.M | 204N.M | 202N.M |
| 42072 | 1/2"Dr. | 140mm | 42mm | 40mm | 422g | 714N.M | 509N.M | 512N.M |
| Packing(T1) | |||||
| Size | Inner box | CTN | NW | GW | CUFT |
|---|---|---|---|---|---|
| 1/4"Dr. | 25 | 100 | 12.2kg | 13.2kg | 1.1' |
| 3/8"Dr. | 12 | 48 | 11.3kg | 12.3kg | 0.52' |
| 1/2"Dr. | 6 | 24 | 10.8kg | 11.8kg | 0.56' |
