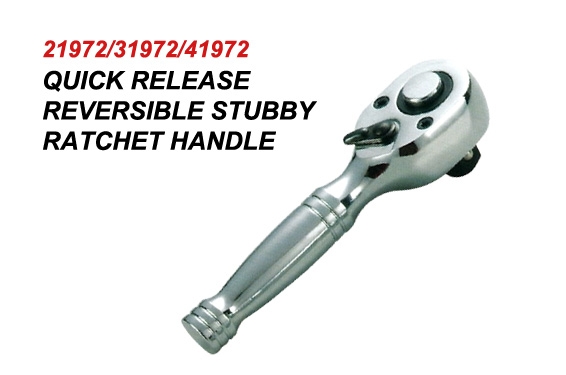

Quick Release Reversible Stubby Ratchet Handle
Specifications
| 72T | Torque Comparison | |||||||
| Part No. | Size | L(mm) | Width | Chief | Ansi | Din | ||
|---|---|---|---|---|---|---|---|---|
| 21972 | 1/4"Dr. | 85mm | 25mm | 26mm | 110g | 82N.M | 51N.M | 62N.M |
| 31972 | 3/8"Dr. | 105mm | 33mm | 32mm | 214g | 275N.M | 204N.M | 202N.M |
| 41972 | 1/2"Dr. | 140mm | 42mm | 40mm | 412g | 714N.M | 509N.M | 512N.M |
| Packing(T1) | |||||
| Size | Inner box | CTN | NW | GW | CUFT |
|---|---|---|---|---|---|
| 1/4"Dr. | 25 | 100 | 12.6kg | 13.6kg | 1.1' |
| 3/8"Dr. | 12 | 48 | 11.0kg | 12.0kg | 0.52' |
| 1/2"Dr. | 6 | 24 | 10.6kg | 11.6kg | 0.56' |
