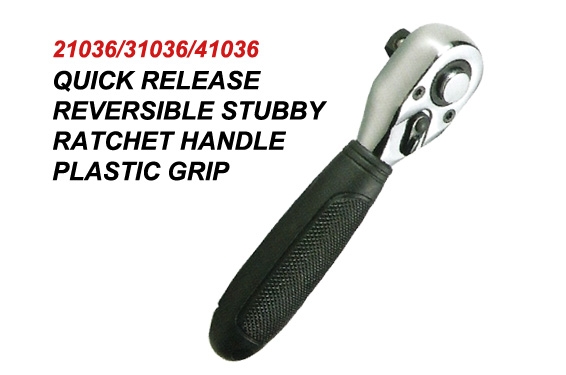

Quick Release Reversible Stubby Ratchet Handle Plastic Grip
Specifications
| Part No. | Torque Comparison | |||||||||
| 36T | 48T | 72T | Size | L(mm) | Width | Chief | Ansi | Din | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 21036 | 21048 | 21072 | 1/4"Dr. | 107mm | 25mm | 26mm | 106g | 82N.M | 51N.M | 62N.M |
| 31036 | 31048 | 31072 | 3/8"Dr. | 136mm | 33mm | 32mm | 232g | 275N.M | 204N.M | 202N.M |
| 41036 | 41048 | 41072 | 1/2"Dr. | 170mm | 42mm | 40mm | 434g | 714N.M | 509N.M | 512N.M |
| Packing(T3) | |||||
| Size | Inner box | CTN | NW | GW | CUFT |
|---|---|---|---|---|---|
| 1/4"Dr. | 25 | 100 | 11.6kg | 12.6kg | 0.73' |
| 3/8"Dr. | 10 | 80 | 19.4kg | 20.4kg | 1.1' |
| 1/2"Dr. | 10 | 40 | 17.8kg | 18.8kg | 1.1' |
